Bearing Shaft Size Reference (in)
C (mm)
A (mm)

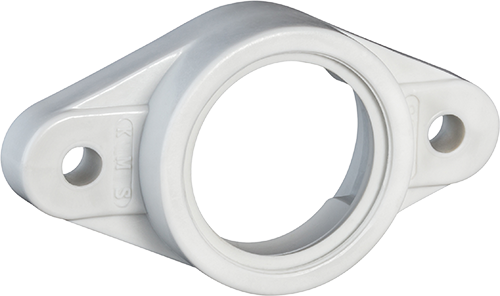

2 Bolt Flange Block Only

2 bolt flange block
only

KMS 2 Bolt Flange Blocks are made from engineering grade glass filled PBT polyester and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode.

HYGIENIC

Where high standards of cleanliness are important, such as in the food industry, their smooth surfaces are much more hygienic than those of cast iron blocks where rough surfaces can harbor objectionable mold or bacteria.

NO PLATING OR COATING TO CHIP OR PEEL

Coated or plated cast iron blocks can scratch, chip and peel. Just the installation of mounting the block can chip the mounting hole edge and begin the process of corrosion. KMS solid plastic mounted blocks will not chip or peel and will never rust.

USED IN MANY INDUSTRIES

KMS blocks are used in a wide variety of industries including food processing, canning, bottling, pharmaceutical, chemical processing, marine and many general industrial applications.

TEMPERATURE

Minimum temperature: -31°F; Maximum in Air: 180°F; Submerged in Water: 120°F
For higher temperatures consult KMS.

corrosion resistant 2 bolt flange block

Specials are our Standard

View Custom Showcase

Set Descending Direction

3 Item(s)

Part # Bearing Shaft Reference A B C E
NFL205

3/4 in, 7/8 in, 1 in

131 mm

99 mm

69.5 mm

29.1 mm

Details

NFL206

1 1/8 in, 1 3/16 in, 1 1/4 in

148 mm

117 mm

80 mm

30.5 mm

Details

NFL204

1/2 in, 5/8 in, 3/4 in

113 mm

90 mm

64 mm

26.5 mm

Details

Set Descending Direction

3 Item(s)

Click here to send a message or call us at 1-888-000-9999

Plastic Vs Steel

Product Integration: A plastic bearing can be mounted into other components or parts such as plastic wheels, pulleys or housings. In certain design concepts, seamless integration can be achieved where the bearing will have the pulley profile as the outer ring, and the shaft or a fixing clip replaces the inner ring . This integration lowers assembly time and also results in utilization of fewer parts, increasing affordability.


Read all the benefits of Plastic vs Steel Bearings
