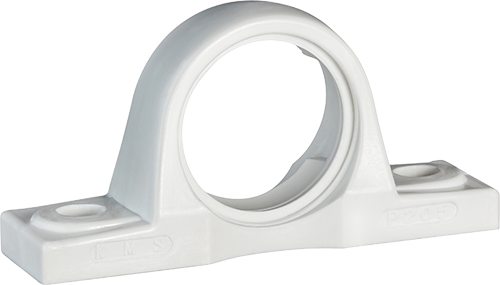

KMS Pillow Blocks are made from PBT, a glass-filled reinforced engineering polymer, and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode.

HYGIENIC:

Where high standards of cleanliness are important, such as in the food industry, their smooth surfaces are much more hygienic than those of cast iron blocks where rough surfaces can harbor objectionable mold or bacteria.

NO PLATING OR COATING TO CHIP OR PEEL:

Coated or plated cast iron blocks can scratch, chip and peel. Just the installation of mounting the block can chip the mounting hole edge and begin the process of corrosion. KMS solid plastic mounted blocks will not chip or peel and will never rust.

USED IN MANY INDUSTRIES

KMS blocks are used in a wide variety of industries including food processing, canning, bottling, pharmaceutical, chemical processing, marine and many general industrial applications.

TEMPERATURE:

Minimum temperature: -31°F; Maximum in Air: 180°F; Submerged in Water: 120°F
For higher temperatures consult KMS.

Specials are our Standard

View Custom Showcase

3 Item(s)

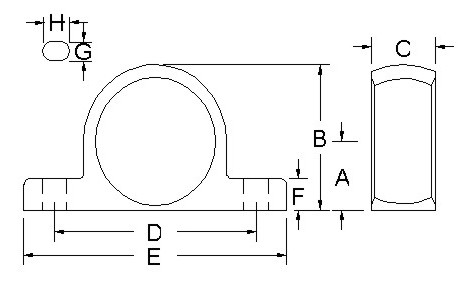

Part # Bearing Shaft Reference A B C E
PPL204

1/2 in, 5/8 in, 3/4 in

33.3 mm

65 mm

38 mm

127 mm

Details

PPL205

3/4 in, 7/8 in, 1 in

36.5 mm

71 mm

38 mm

140.5 mm

Details

PPL206

1 1/8 in, 1 3/16 in, 1 1/4 in

42.9 mm

84 mm

46 mm

163 mm

Details

3 Item(s)

Click here to send a message or call us at 1-888-000-9999

Plastic Vs Steel

Cleanliness/Hygienic: Plastic bearings generally operate cleaner than metal bearings because they do not need lubrication, they are resistant to corrosion, and they can be washed down without the worry of re-lubing. This capability makes them a viable option for clean room environments, and wash down applications. A plastic bearing made from either PBT, PVDF or PEEK can be post sterilized by standard methods such as autoclave or Gamma.


Read all the benefits of Plastic vs Steel Bearings
