Plastic Conveyor Bearings
KMS Plastic Conveyor ball bearings feature our standard ball bearing construction for light weight, free spinning performance to meet the demands of today’s low incline conveyors.
When fitted with our corrosion resistant 316 stainless balls they can be washed down, becoming maintenance free and requiring no lubricant. They can be used in standard industrial tube and pipe sizes for use in conveyor systems. See chart below.
BEARING SIZE TO TUBE/PIPE
Tube Size and Description |
Bearing Selections |
1" PVC, 1" ID x 1.315 O.D., 1" PVC, sch. 40. |
CB312-1.0 in Single Row (SR) |
1-1/2 Schedule 80 PVC (.200 wall thickness) |
CB437-1.5 |
1-1/2 Schedule 40 PVC (.150 wall thickness) |
CB437 - 1.6 |
1.9 Steel, 9 gauge (9 gauge = .148 wall) |
|
2.0 Steel, 12 gauge (12 gauge = .109 wall) |
CB437-1.78 |
2.0 Steel (16 gauge = .065 wall thickness) |
CB437-1.87 |
2.0 PVC, Schedule 40 (.150 wall thickness) |
CB437 or 687 - 2.05 |
2 1/2 Steel, 11 gauge (.120 wall thickness) |
CB437 or 687 - 2.26 |
This bearing and tube guide is intended to be a practical guide for selection. Consult with tube/pipe manufacturer for actual dimensions held in production lots. |

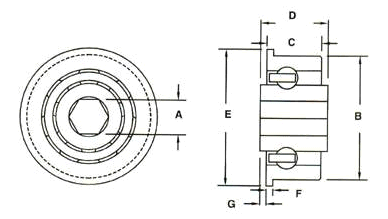

Single Row

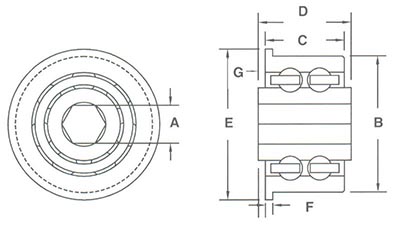

Double Row
Part # | A (Hex) | B | |
---|---|---|---|
CB312-1.0SR-6 |
5/16 in |
1 in |
Details |
CB312-1.0DR-6 |
5/16 in |
1 in |
Details |
CB312-1.035SR-6 (1517 O/R) |
5/16 in |
1.035 in |
Details |
QCB437-1.77 |
7/16 in |
1.77 in |
Details |
CB437-1.5SR-6 |
7/16 in |
1.5 in |
Details |
CB437-1.5LSR-6 |
7/16 in |
1.5 in |
Details |
CB437-1.5DR-6 |
7/16 in |
1.5 in |
Details |
CB437-1.6SR-6 |
7/16 in |
1.6 in |
Details |
CB437-1.6LSR-6 |
7/16 in |
1.6 in |
Details |
CB437-1.6DR-6 |
7/16 in |
1.6 in |
Details |
CB437-1.78SR-6 |
7/16 in |
1.78 in |
Details |
CB437-1.78DR-6 |
7/16 in |
1.78 in |
Details |
CB437-1.87SR-6 |
7/16 in |
1.87 in |
Details |
CB437-1.87DR-6 |
7/16 in |
1.87 in |
Details |
CB437-2.05SR-6 |
7/16 in |
2.056 in |
Details |
CB437-2.05DR-6 |
7/16 in |
2.056 in |
Details |
CB437-2.26SR-6 |
7/16 in |
2.26 in |
Details |
CB437-2.26DR-6 |
7/16 in |
2.26 in |
Details |
CB687-2.05SR-6 |
11/16 in |
2.056 in |
Details |
CB687-2.05DR-6 |
11/16 in |
2.056 in |
Details |
CB687-2.26SR-6 |
11/16 in |
2.26 in |
Details |
CB687-2.26DR-6 |
11/16 in |
2.26 in |
Details |
