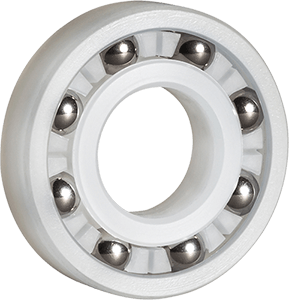

Kynar Plastic Radial Ball Bearings
Extreme Chemical & Corrosion Resistant
Kynar® PVDF (Polyvinylidene Fluoride) is a high performance engineering polymer for use when the Standard Celcon® Acetal Polymer does not meet the performance requirements of the application.
Kynar® has provided superior chemical resistance properties in critical contact applications for food, pharmaceutical, and semiconductor industries for over 20 years. Kynar® applications include membranes, piping, tubes, valves, pumps, vessels, and now BEARINGS. For additional information please see Materials.
Kynar® polyvinylidene fluoride is a tough engineering thermoplastic that offers a unique balance of performance properties. It has the characteristic stability of fluoropolymers when exposed to harsh thermal, chemical, and ultraviolet environments.
Click here for PDF of Manufacturer’s materials specification sheet.
| Part # | ID | OD | WIDTH | |
|---|---|---|---|---|
| KR3-6 | 3/16 | 1/2 | 5/32 | Details |
| KR3-G | 3/16 | 1/2 | 5/32 | Details |
| KR3A-6 | 3/16 | 5/8 | 0.196 | Details |
| KR3A-G | 3/16 | 5/8 | 0.196 | Details |
| KR4-6 | 1/4 | 5/8 | 0.196 | Details |
| KR4-G | 1/4 | 5/8 | 0.196 | Details |
| KR4A-6 | 1/4 | 3/4 | 7/32 | Details |
| KR4A-G | 1/4 | 3/4 | 7/32 | Details |
| KR4AW-6 | 1/4 | 3/4 | 9/32 | Details |
| KR4AW-G | 1/4 | 3/4 | 9/32 | Details |
| KR6-6 | 3/8 | 7/8 | 7/32 | Details |
| KR6-G | 3/8 | 7/8 | 7/32 | Details |
