2 Bolt Flange fitted with UHMW Insert Bearing

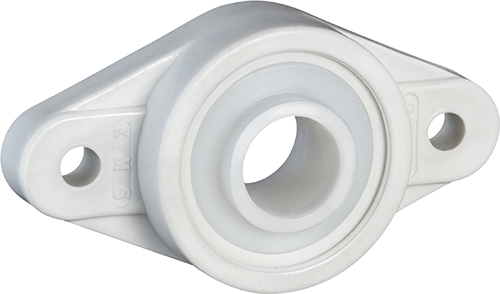

plastic mounted blocks with insert bearings

KMS Bearings produces 2 Bolt Flange Blocks from PBT, a glass filled reinforced engineering polymer, that will never corrode or rust. When inserted with a KMS UHMW Insert sleeve bearing, they provide superior corrosion resistance compared to any mounted unit offered today.

BLOCK CONSTRUCTION:

Blocks are molded from a high grade of glass-filled thermoplastic polyester (PBT). The block's spherical bore is machined for concentricity and proper fit of the insert bearing. The last step in manufacturing is machining the solid base for flatness.

SLEEVE BEARING CONSTRUCTION:

KMS produces insert sleeve type bearings made from UHMW-PE plastic. They are CNC machined from an extruded rod for superior mechanical performance and longer life. This type of bearing is intended primarily to reduce friction and permit free movement of turning parts. They are best suited for light to moderate loads and low speeds.

MATERIALS:

BLOCKS: PBT Polyester, glass filled

SLEEVE BEARING:UHMW-PE (Ultra High Molecular Weight Polyethylene)

TEMPERATURE:
Minimum temperature: -31°F; Maximum in Air: 180°F; Submerged in Water: 120°F
For higher temperatures consult KMS.

UHMW 2 bolt flange bearing

View as Grid List

8 Items

per page
Set Descending Direction
Part # Bore Size Width of Inner Ring A B C E
NFL204-SIB-1/2

1/2 in

0.591 in

113 mm

90 mm

64 mm

26.5 mm

Details
NFL204-SIB-5/8

5/8 in

0.591 in

113 mm

90 mm

64 mm

26.5 mm

Details
NFL205-SIB-7/8

7/8 in

0.709 in

131 mm

99 mm

69.5 mm

29.1 mm

Details
NFL204-SIB-3/4

3/4 in

0.591 in

113 mm

90 mm

64 mm

26.5 mm

Details
NFL205-SIB-3/4

3/4 in

0.709 in

131 mm

99 mm

69.5 mm

29.1 mm

Details
NFL205-SIB-1

1 in

0.709 in

131 mm

99 mm

69.5 mm

29.1 mm

Details
NFL206-SIB-1-3/16

1 3/16 in

0.709 in

148 mm

117 mm

80 mm

30.5 mm

Details
NFL206-SIB-1-1/4

1 1/4 in

0.709 in

148 mm

117 mm

80 mm

30.5 mm

Details
View as Grid List

8 Items

per page
Set Descending Direction

Plastic Vs Steel

Lightweight: Plastic is five times lighter than steel, thereby reducing the weight and energy to move them.


Read all the benefits of Plastic vs Steel Bearings
