Pillow Block fitted with SS316 Insert Ball Bearing

stainless steel pillow block bearings

KMS Bearings produces Pillow Blocks from PBT, a glass filled reinforced engineering polymer, that will never corrode or rust. When inserted with a KMS 316 stainless insert ball bearing, they provide superior corrosion resistance compared to any mounted unit offered today.

BLOCK CONSTRUCTION:

Blocks are molded from a high grade glass-filled PBT polymer. The block’s spherical bore is machined for concentricity and proper fit of the insert bearing. The last step in manufacturing is machining the solid base for flatness.

BEARING CONSTRUCTION:

CNC machined bearing rings, polymer cages and 316 Stainless balls are used in the manufacture of KMS insert ball bearings. This type of bearing is intended primarily to reduce friction and permit free movement of turning parts. They are best suited for moderate loads and low speeds.

MATERIALS:

BLOCKS: Glass-filled PBT polymer

BEARING RINGS: 316 Stainless Steel

BALLS: Standard balls are 316 stainless. When necessary, other types of balls are available on a special order basis.

BALL RETAINER (CAGE): Polypropylene or Acetal

SHIELDS/SEALS: Open design is standard. Polymer shield/seals can be provided on a special order basis.

LUBRICATION: Acetal Insert bearings are supplied dry.  When necessary, special order lubricants can be provided.

TEMPERATURE:
Minimum temperature: -31°F; Maximum in Air: 140°F; Submerged in Water: 120°F
For higher temperatures consult KMS.

steel pillow block bearings

View as Grid List

9 Items

per page
Set Descending Direction

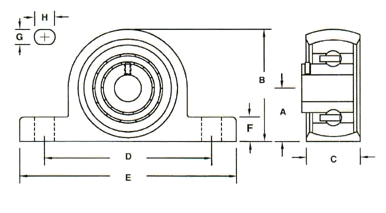

Part # Bore Size Width of Inner Ring A B C E
PPL204-SSIB-1/2

1/2 in

0.591 in

33.3 mm

65 mm

38 mm

127 mm

Details
PPL204-SSIB-5/8

5/8 in

0.591 in

33.3 mm

65 mm

38 mm

127 mm

Details
PPL204-SSIB-3/4

3/4 in

0.591 in

33.3 mm

65 mm

38 mm

127 mm

Details
PPL205-SSIB-3/4

3/4 in

0.709 in

36.5 mm

71 mm

38 mm

140.5 mm

Details
PPL205-SSIB-7/8

7/8 in

0.709 in

36.5 mm

71 mm

38 mm

140.5 mm

Details
PPL205-SSIB-1

1 in

0.709 in

36.5 mm

71 mm

38 mm

140.5 mm

Details
PPL206-SSIB-1-1/8

1 1/8 in

0.709 in

42.9 mm

84 mm

46 mm

163 mm

Details
PPL206-SSIB-1-3/16

1 3/16 in

0.709 in

42.9 mm

84 mm

46 mm

163 mm

Details
PPL206-SSIB-1-1/4

1 1/4 in

0.709 in

42.9 mm

84 mm

46 mm

163 mm

Details
View as Grid List

9 Items

per page
Set Descending Direction

Plastic Vs Steel

Lightweight: Plastic is five times lighter than steel, thereby reducing the weight and energy to move them.


Read all the benefits of Plastic vs Steel Bearings
