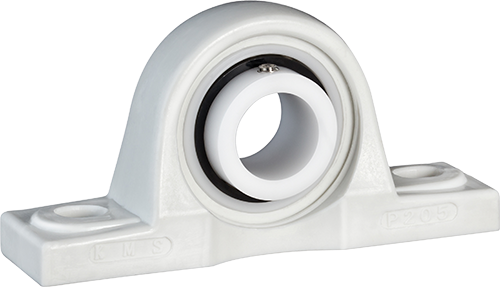

Pillow Block fitted with Acetal Insert Ball Bearing
KMS Bearings produces Pillow Blocks from PBT, a glass-filled reinforced engineering polymer, that will never corrode or rust. When inserted with a KMS Acetal Insert ball bearing, they provide superior corrosion resistance compared to any mounted unit offered today.
BLOCK CONSTRUCTION:
Blocks are molded from a high grade glass-filled PBT polymer. The block’s spherical bore is machined for concentricity and proper fit of the insert bearing. The last step in manufacturing is machining the solid base for flatness.
BEARING CONSTRUCTION:
CNC machined bearing rings, polymer cages and 316 Stainless balls are used in the manufacture of KMS insert ball bearings. This type of bearing is intended primarily to reduce friction and permit free movement of turning parts. They are best suited for light loads and low speeds.
MATERIALS:
BLOCKS: Glass-filled PBT polymer
BEARING RINGS: Acetal plastic (POM)
BALLS: Standard balls are 316 stainless. When necessary, other types of balls are available on a special order basis.
BALL RETAINER (CAGE):Polypropylene or Acetal
SHIELDS/SEALS: Open design is standard. Polymer shield/seals can be provided on a special order basis.
LUBRICATION: Acetal Insert bearings are supplied dry. When necessary, special order lubricants can be provided.
TEMPERATURE:
Minimum temperature: -31°F; Maximum in Air: 180°F; Submerged in Water: 120°F
For higher temperatures consult KMS.
Part # | Bore Size | Width of Inner Ring | A | B | C | E | |
---|---|---|---|---|---|---|---|
PPL204-AIB-1/2 |
1/2 in |
0.591 in |
33.3 mm |
65 mm |
38 mm |
127 mm |
Details |
PPL204-AIB-5/8 |
5/8 in |
0.591 in |
33.3 mm |
65 mm |
38 mm |
127 mm |
Details |
PPL204-AIB-3/4 |
3/4 in |
0.591 in |
33.3 mm |
65 mm |
38 mm |
127 mm |
Details |
PPL205-AIB-3/4 |
3/4 in |
0.709 in |
36.5 mm |
71 mm |
38 mm |
140.5 mm |
Details |
PPL205-AIB-7/8 |
7/8 in |
0.709 in |
36.5 mm |
71 mm |
38 mm |
140.5 mm |
Details |
PPL205-AIB-1 |
1 in |
0.709 in |
36.5 mm |
71 mm |
38 mm |
140.5 mm |
Details |
PPL206-AIB-1-1/8 |
1 1/8 in |
0.709 in |
42.9 mm |
84 mm |
46 mm |
163 mm |
Details |
PPL206-AIB-1-3/16 |
1 3/16 in |
0.709 in |
42.9 mm |
84 mm |
46 mm |
163 mm |
Details |
PPL206-AIB-1-1/4 |
1 1/4 in |
0.709 in |
42.9 mm |
84 mm |
46 mm |
163 mm |
Details |
